Blackmagic Design - UltraStudio Recorder 3G

Click to enlarge

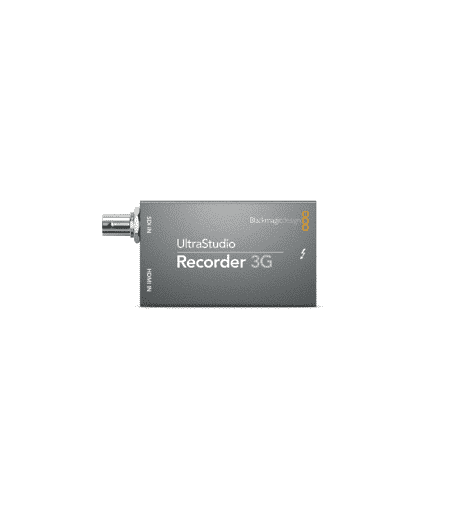

Blackmagic Design – UltraStudio Recorder 3G

Name: Blackmagic Design - UltraStudio Recorder 3G
Brand: Blackmagic Design
SKU: UltraStudioRecorder3G
Availability: OutOfStock

529 AED

Get the world’s smallest pocket sized SDI and HDMI video capture for your Thunderbolt 3 laptop or desktop computer

Get a Quote Button required the Contact Form 7 plugin to work with.

1 Year Warranty We Ship to the GCC
DHL 1 to 3 Working Days Aramex 5 to 7 working days

Out of stock

SKU: UltraStudioRecorder3G Category: Capture Cards Tags: ATEMminiextreme, Blackmagic, capture cards, Livestream, Streamer, switcher

Description

UltraStudio Recorder 3G

Get the world’s smallest pocket sized SDI and HDMI video capture for your Thunderbolt 3 laptop or desktop computer! UltraStudio Recorder 3G features the highest quality 10 bit uncompressed and compressed video capture that’s compatible with all popular video software including DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC and hundreds more!

Connections

SDI Video Inputs

1 x 10-bit SD/HD switchable

SDI Rates

270Mb, 1.5G, 3G

SDI Audio Inputs

16 Channels embedded in SD/HD

HDMI Video Inputs

1 x HDMI 2.0 type A connector

HDMI Audio Inputs

8 Channels embedded in SD/HD

Software Applications

Wirecast

vMix

OBS

Operating Systems

Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.

Windows 10, 64-bit.
Windows 11.

Linux

Computer Interface

Thunderbolt™ 3 (Mac OS, Windows and Linux)

Physical Specifications

Additional information

Weight	1 kg
Dimensions	30 × 20 × 5 cm
Brand	Blackmagic Design

About brand

Blackmagic Design Pty Ltd. is an Australian digital cinema company and manufacturer based in Port Melbourne, Victoria, Australia. It designs and manufactures broadcast and cinema hardware, most notably high-end digital movie cameras, and also develops video editing software, such as the DaVinci Resolve and Blackmagic Fusion applications.

Shipping & Delivery

*Local shipments within the UAE for a value above 200 is free of charge and will take 1 to 3 working days.

*International shipments will be calculated upon checkout in partnership with Aramex & DHL and duration would be 1 to 7 working days

*For Export Orders outside of the UAE , Customs and VAT will be charged by the courier at the receiving country according to Each Country Rates and Regulations for more information, please Contact Us.

*Gift cards delivery process is instant, and sometimes it might take up to 12 hrs max.

More Details

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software included

Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Internal Software Upgrade

Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Other supported applications include:

Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom.These are third party applications and support may vary, check with your software vendor.

SDI Video Standards

SD Video Standards: 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B

SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.

SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.

SDI Video Sampling: 4:2:2, 4:4:4

SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.

SDI Color Space: REC 601, REC 709 and REC 2020

Multiple Rate Support: SDI video connection is switchable between SD and HD.

HDMI Video Standards

SD Video Standards: 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.

HDMI Video Sampling: 4:2:2 and 4:4:4

HDMI Color Precision: 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.

HDMI Configuration: HDMI 2.0 supports Deep Color.

HDMI Color Space: REC 601, REC 709 and REC 2020

Multiple Rate Support: HDMI video connection is switchable between SD and HD.

Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Hardware Frame Buffer

v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).

Processing

Colorspace Conversion: Hardware based real time.

Physical Installation: Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.

Power Requirements

Environmental Specifications

Operating Temperature: 5° to 40° C (32° to 104° F)

Storage Temperature: -20° to 45° C (-4° to 113° F)

Relative Humidity: 0% to 90% non-condensing

What's Included

UltraStudio Recorder 3G
